Toolset allows you to add front-end sorting controls to any View or WordPress Archive. This allows your site’s visitors to sort the results based on a variety of options, besides the default order setting.

Sorting controls on the front-end
Sorting controls on the front-end

How to Enable front-end sorting

Sorting controls need to be inserted in the Filter Editor, similarly to custom search filters, so the first step is to make sure that the corresponding sections are enabled. You can enable them by clicking the Screen Options button at the top-right corner and selecting the checkboxes for Custom Search Settings and Filter Editor.

Enabling Custom Search Settings and Filter Editor sections for an existing View Enabling Custom Search Settings and Filter Editor sections for an existing WordPress Archive




Alternatively, you can use the Views purpose drop-down on the same screen and select one of the following options:

  • Display the results using a custom search or Full custom display mode in case of Views
  • Display the archive as a custom search in case of WordPress Archives

Both options will enable the necessary sections automatically.

How to Add Sorting Controls

The process to add sorting controls is similar for a View and a WordPress Archive. You need to scroll down to the Filter Editor and use the Sorting controls button.

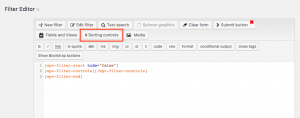

The Sorting controls button in the Filter Editor
The Sorting controls button in the Filter Editor

This brings up a dialog that lets you choose which fields users will be able to sort by and customize options for the sorting controls.

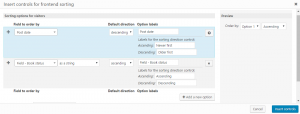

The sorting controls dialog box
The sorting controls dialog box



Depending on the settings of this dialog, sorting controls will be rendered on the front-end accordingly.

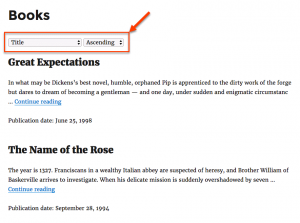

Sorting controls rendered as select fields Sorting controls rendered as radio fields


Customizing the options for the sorting controls

You can easily customize the options and the behavior of the sorting controls. The table below displays the customization options.

Option description Screenshot
The sorting option you set to be the first one, on the top, is used as a default one. Default option cannot be deleted.
 You can customize the labels used for the sorting direction for each key separately.

To enable this, click on the Allow to modify the sorting direction checkbox.







How to style the sorting controls

Once you insert the controls in the Filter Editor, you get two different shortcodes:

  • wpv-sort-orderby for the fields to order by
  • wpv-sort-order for the sorting direction

You can then style them or wrap them in HTML elements, taking full control of how they are rendered on the front-end.

The following images displays an example of custom HTML markup used to style the sorting controls.

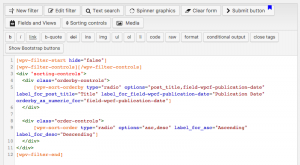

Using custom HTML to style shortcodes for the front-end sorting controls
Using custom HTML to style shortcodes for the front-end sorting controls

You can also use the CSS editor section to enter custom code, which will be applied on the front-end.

Customizing How Results are Updated

The sorting controls work with the custom search settings out-of-the-box.

Selecting how sorting results will be updated
Selecting how sorting results will be updated

This means that you can customize how the sorting results are updated in the Custom Search Settings section.

Combining Sorting Controls and Sortable Tables

Views Loop Wizard provides an option to display results as a table, sortable by columns. Front-end sorting controls also work with this feature automatically.

When your visitors use the controls to sort the results, the ordering of the table is also being updated.

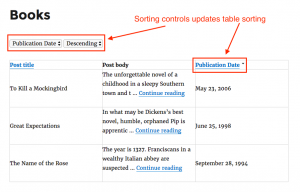

Front-end sorting controls in combination with sortable table
Front-end sorting controls in combination with sortable table

Respectively, when the table is being sorted, using the links at the column headers, the sorting controls display the corresponding options.
